Compact hot stamping machine for mounting on label dispensers that work in dry surroundings. Hot stamping is still the best labelling method for difficult product surfaces and shapes, even if digital and technological developments have produced alternative solutions.
If your products have a difficult-to-print surface or shape, hot stamping is often the best labelling/printing solution for them.

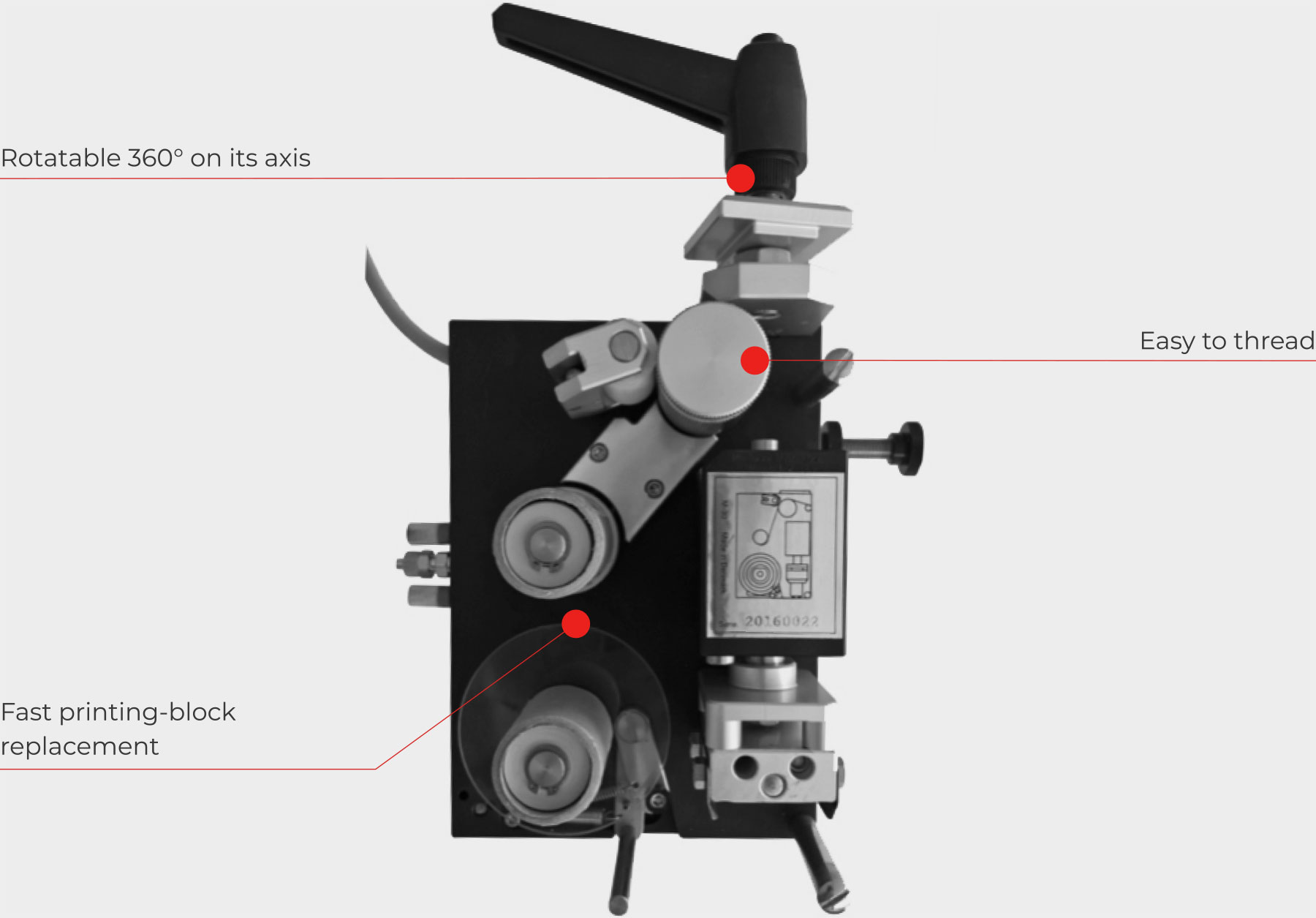

The M-30 gives you a small, compact hot stamping machine that meets your need for printing dates, batch numbers, etc. It has built-in control of stamping time and heat, and it is also designed to be installed in all types of packing machines and label dispensers.
You can mount it horizontally, vertically and with a simple handle that enables it to be rotated 360° on its axis. Your labelling can be up to 40 mm wide and 20 mm high, the compressive force is 500N and you can label up to 150 products a minute.
The underlying principle of hot-stamping is that a heated metal stamp presses a coloured stamping foil against an item so the colour from the foil is deposited on the stretch wrap or label.
The stamping foil contains an adhesive that solidifies almost instantly. The colour does not bleed and is not soluble in water or fat.
The metal stamp is designed and built-up with a printing block and type sorts. And if you want traceability, you combine the stamp with a numbering machine. Naturally, you can use multiple printing blocks for the same stamping set-up.
We manufacture the machines in aluminium and stainless steel, and you can order mounting equipment if you wish to install the stamping set-up in your packing machine or label dispenser.
The M-30 is also available in two variants:
- With a cassette for fast and easy replacement of stamping-foil rolls
- With a built-in counter-pressure plate, which is useful for stamping manually inserted cartons and other small items.
As an optional accessory, we can supply the printer with a built-in rack so you can offset the print both lengthwise and crosswise.
We have experienced that hot stamping is very popular at dairies, meat-packing companies and breweries. It is easy to integrate into your production line and we will gladly assist with mounting and instructions.
M-30 is easy to maintain because so much of it is mechanical and because the equipment withstands water.
If you need a bigger printed area, you should consider one of our other models: M-40, M-80, M-100, M-150 or M-200.
We have a wide selection of stamping foils so you can get the quality, colour, width and length you need – at an attractive price.
