SPX II is a high-output printer designed to be built into systems that print and apply labels in a single workflow.
The printer is well-suited for printing tasks wherever labels are used, such as foods and pharmaceutical products, and for mail sorting, pallet labelling and marking of electronic components.
The printer is a printing module which means that it must be built into a dispenser to be able to print and apply the label in a single workflow.
There are several different models to choose from:
- Thermal transfer printing where you use a transfer ribbon/print film or print directly on thermal labels.
- The module comes in both right-hand and left-hand execution with various ports and connections.
The control panel can be freely positioned and does not need to be located near the printer. So, even if the printer is knee-high on the back of your system, it is easy to position the control panel to ensure ideal access and working position for the operator .
The module is easy to clean, and the transfer ribbon and print head are quick and easy to replace.
The printer can handle tests, graphics, date and time, barcodes and batch numbers.
We recommend NiceLabel for designing labels, and we will gladly introduce you to the program, and naturally help out with installation, running in and instructions in how to use the print module itself.
The printer is made by Carl Valentin, a supplier of top-quality printing solutions and labelling systems.
|
Printing speed:
|
Up to 50–300 mm/sec.*
|
|
Print quality:
|
200, 300 and 600 dpi*
|
|
Label width:
|
25–162.5 mm*
|
|
Label length:
|
15–2000 mm*
|
(* Depending on the model)

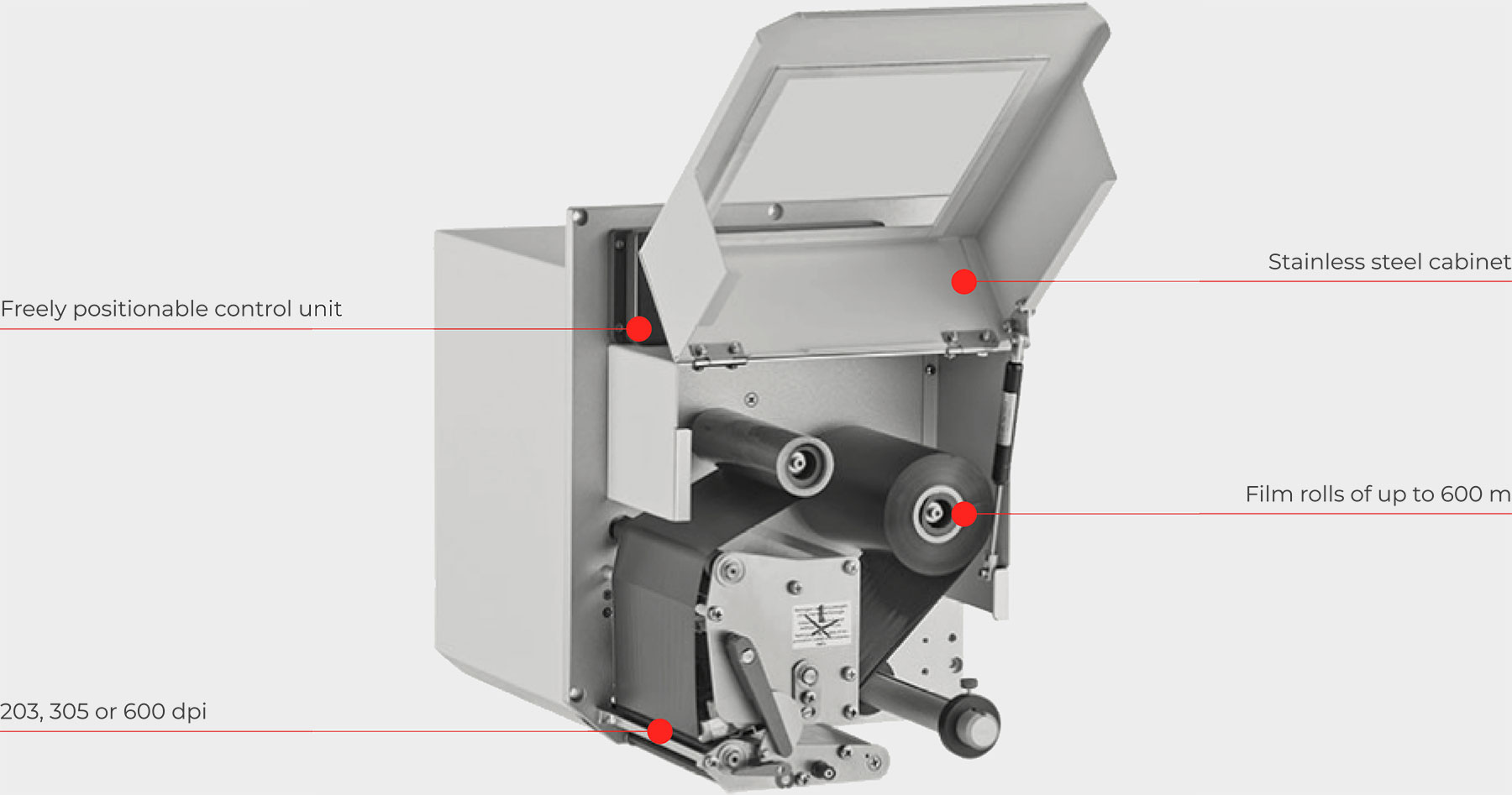

- Freely positionable control unit
- 203, 305 or 600 dpi
- Stainless steel cabinet
- Film rolls of up to 600 m
