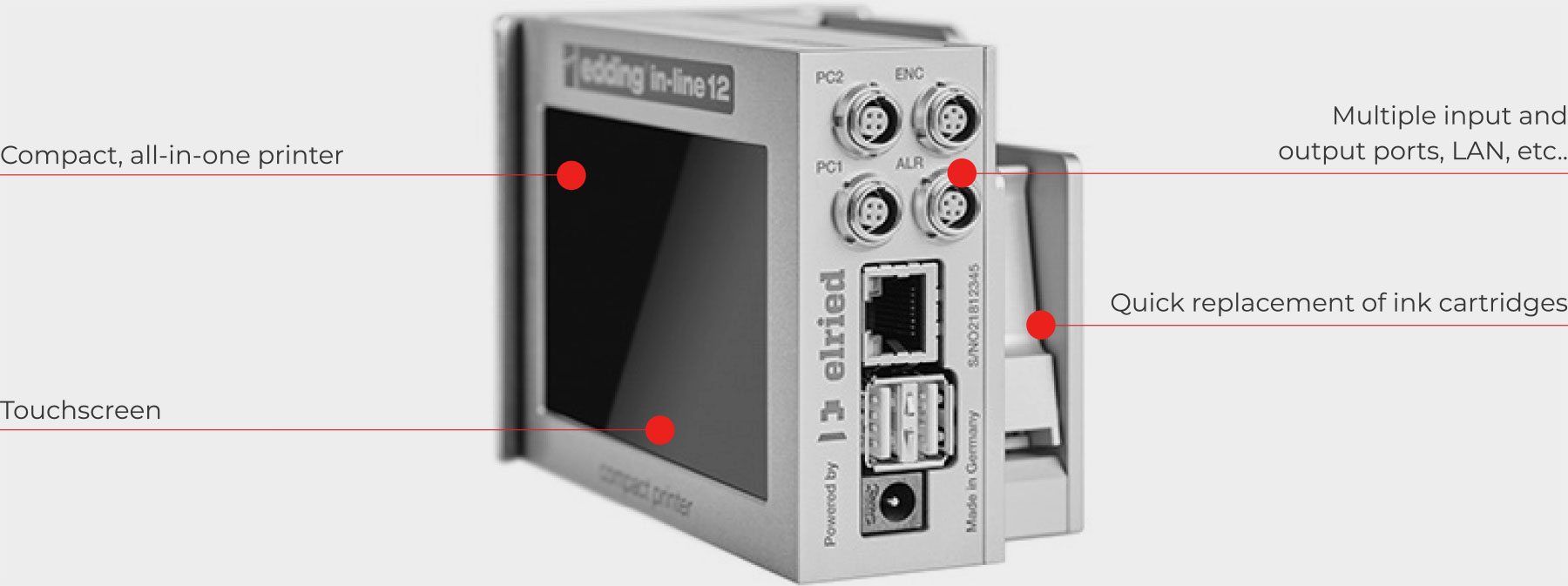

No matter if you choose the in-line 12 or in-line 25 model, you get a printer that is easy to integrate into your production line and it can be operated from both the touchscreen and the wireless keyboard. If you incorporate it into your network, it can also be operated from your smartphone, tablet or PLC.
It takes less than 15 seconds to replace the ink cartridge. You can choose from different colours and qualities, enabling you, among other things, to print on cardboard, plastic, glass or metal.
Its memory has space for 100,000 designs, and you can print dates, times, batch numbers, barcodes and graphics at a good resolution – and it prints rapidly: 76 m/min. at 300 dpi.
- in-line 12 has a print height of 12.7 mm and resolution of up to 600 dpi.
- in-line 25 has a print height of 25.4 mm and resolution of up to 300 dpi.

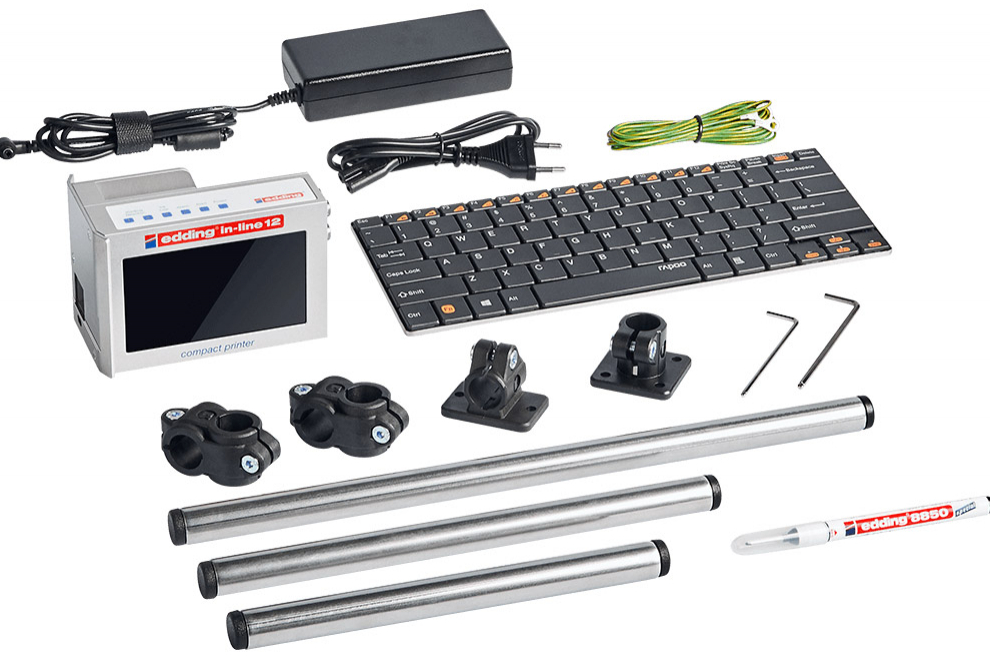

You get a user-friendly, all-in-one printer with a touchscreen, wireless keyboard, cables and installation fittings, and it can be connected to your production line via the internet/web server to units such as an encoder, photocell or stack lights. It has both digital and analogue inputs and outputs, including digital I/O.
Maintenance is easy and requires no special technical insight. If your production process has been at a standstill for a while, all you have to do is wipe off the cartridge. The cabinet is aluminium and the printer has no wearing parts – and the device does not need to be calibrated.
The printer is well-suited for small and medium-sized production environments – with minimal operating costs.
We will gladly assist with installation, running in, instructions and support and, needless to say, we can deliver the cartridges.
The printer is made by Elried, a German company specialising in printing and packaging solutions.
