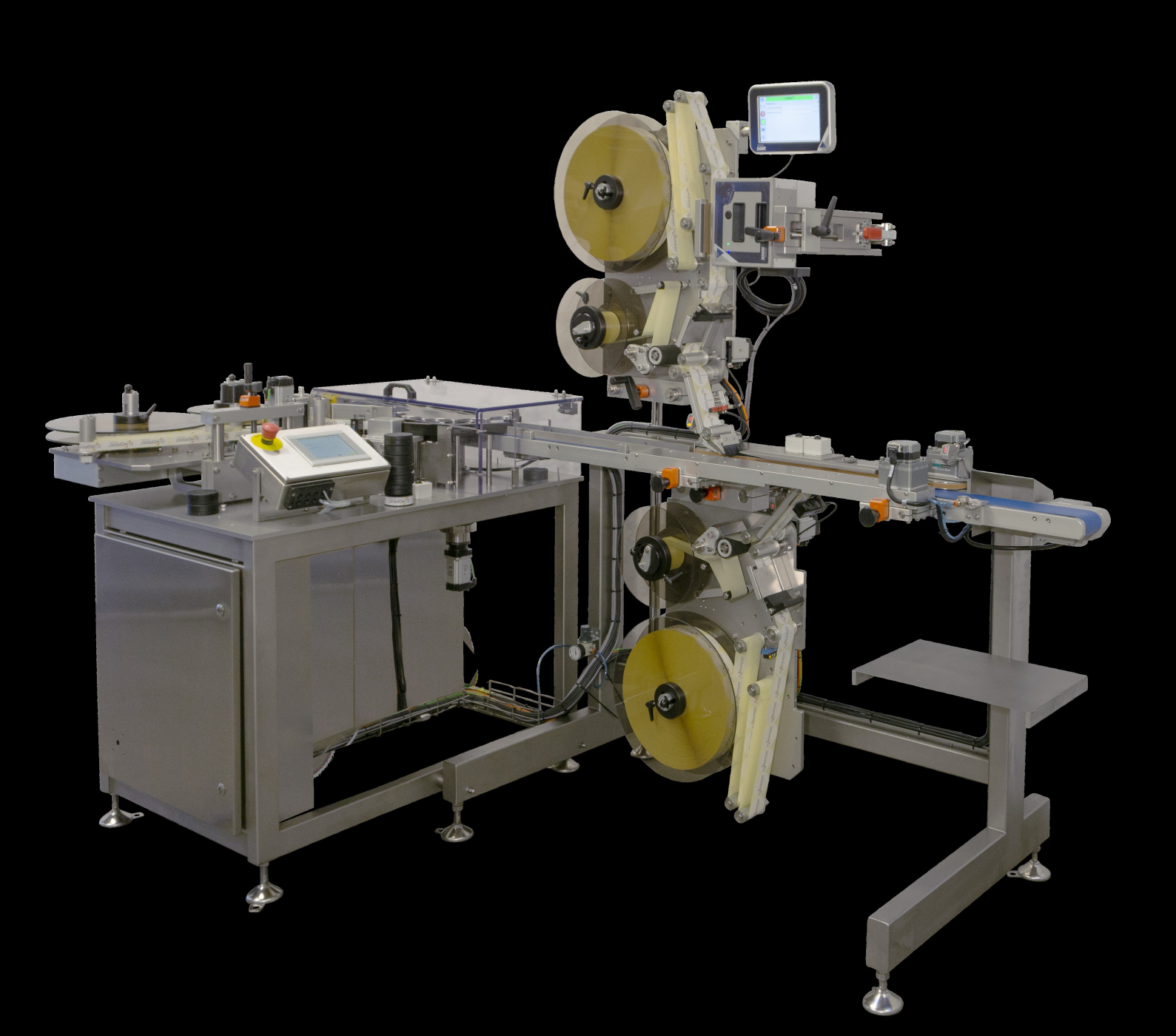

Cans.

Best precision on top, bottom and side.

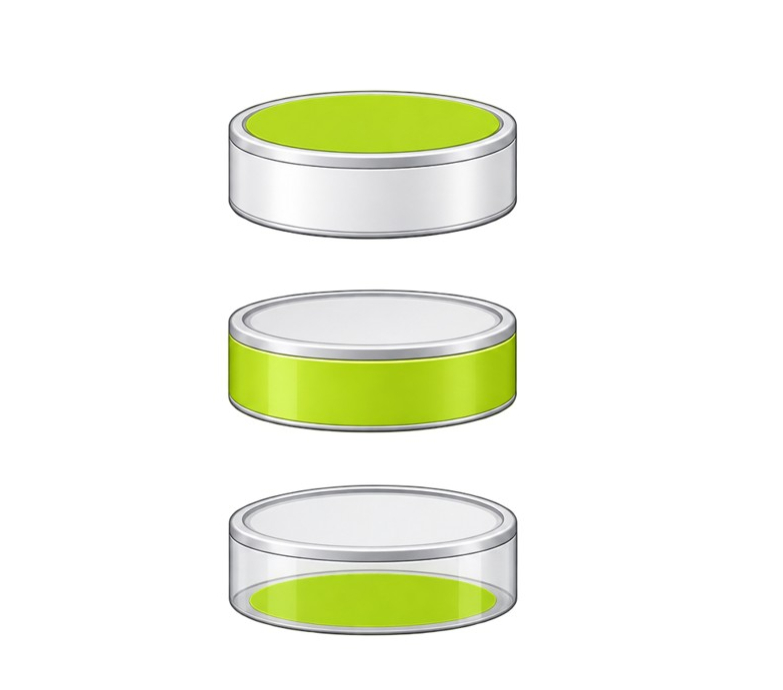

One can. Three labels.
Extremely fast. Precise. And with integrated quality control.

150/min	Max. capacity
±0.2–0.3mm	Placement accuracy
3	Labels per can
Ø50–80mm	Can range

Key words.

Capabilities	Benefits
Top, bottom and side labelling in a single, integrated line Standard output up to 130 cans/min, upgradable to 150 cans/min Positioning accuracy of ±0.2 mm (top/bottom) and ±0.3 mm (side) Automatic rejection of cans with a missing or misaligned lid Handles can diameters from Ø50 to Ø80 mm Right- and left-hand versions for parallel production lines	Continuous 24/7, heavy-duty design on a reinforced back plate Modular design adapts to new can formats, printers and traceability Stainless steel, anodized aluminium and POM construction, rated IP66 Up to 99 recipes and 3 user levels keep changeovers fast and controlled

How it works.

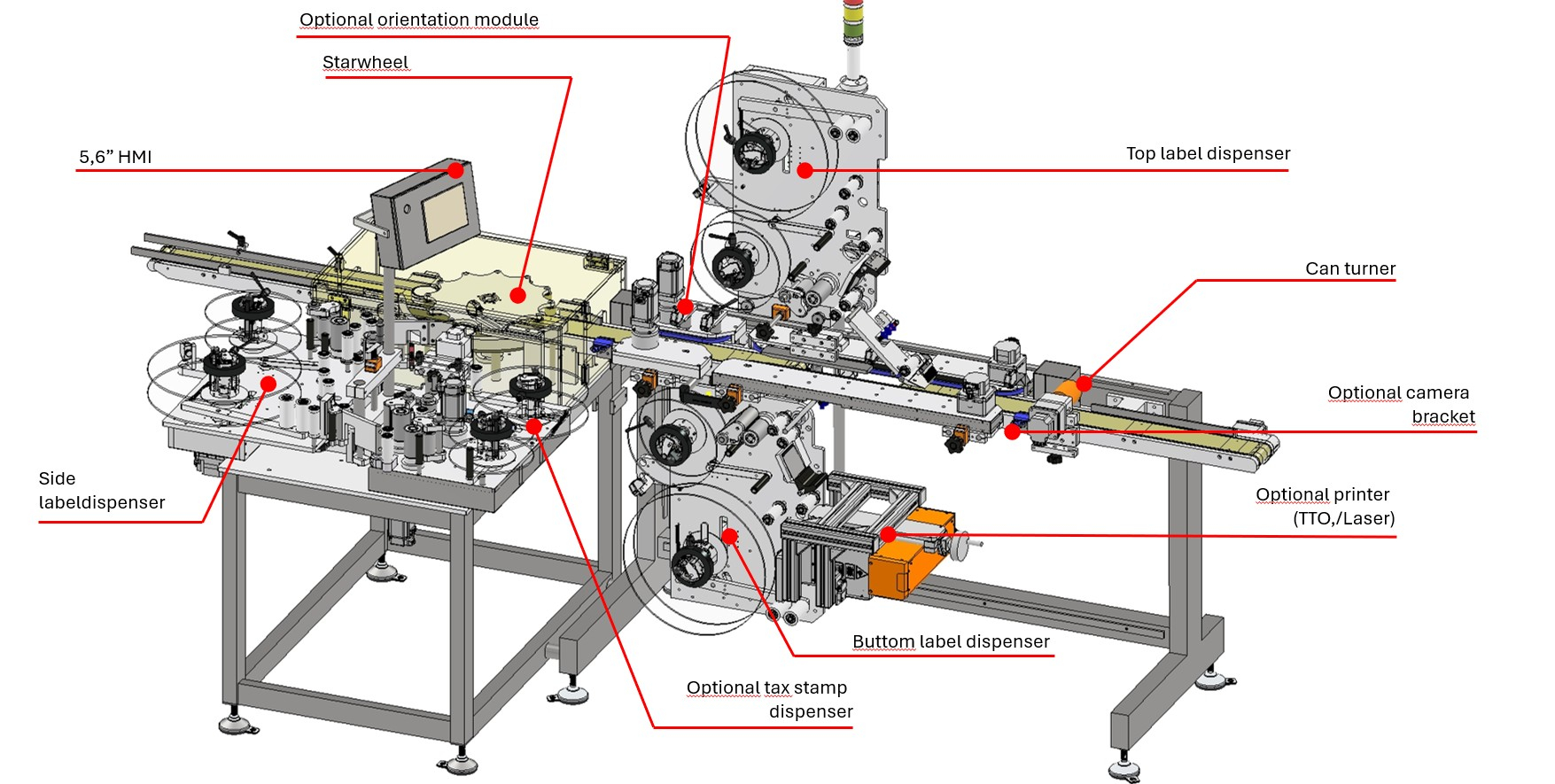

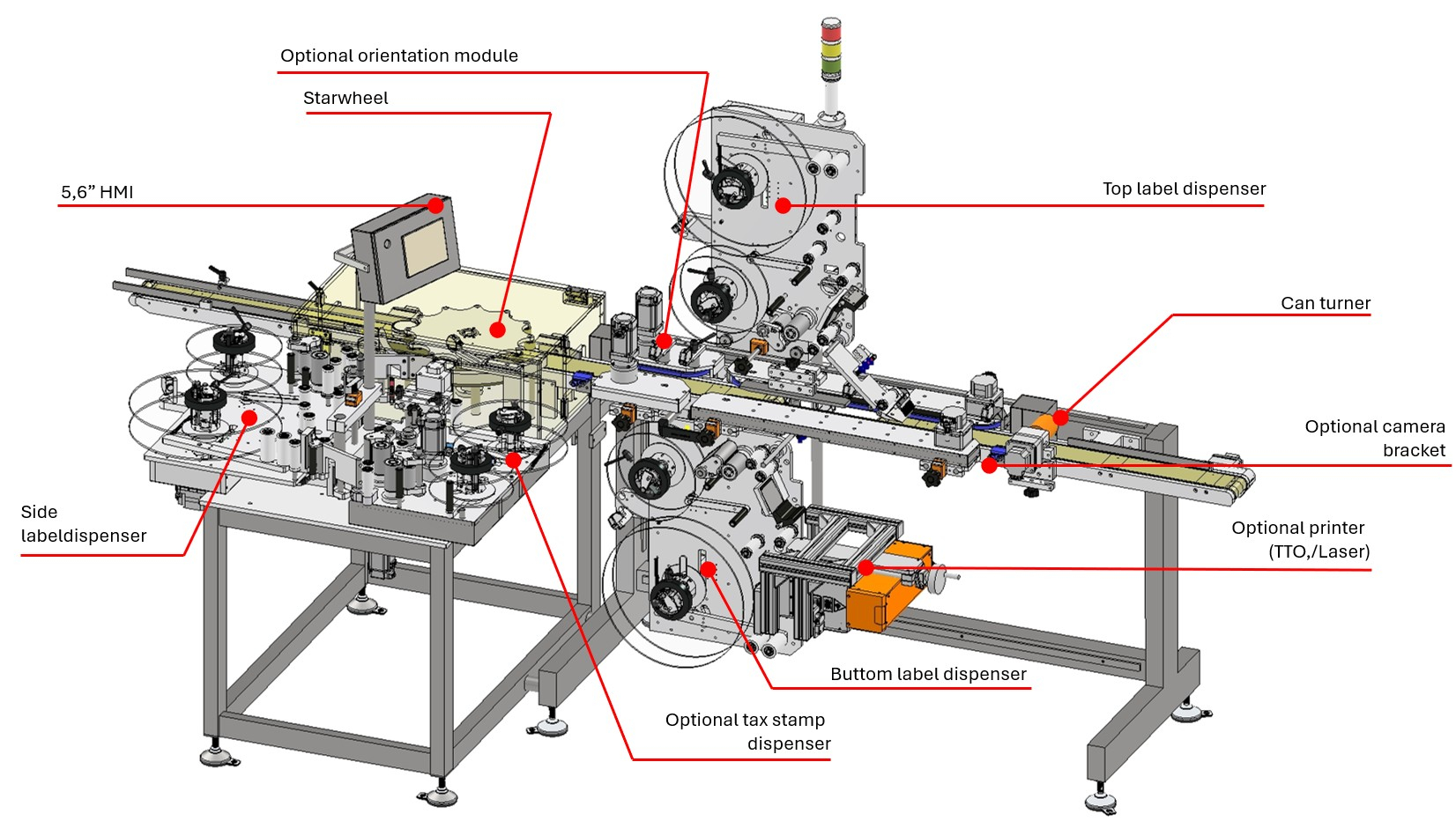

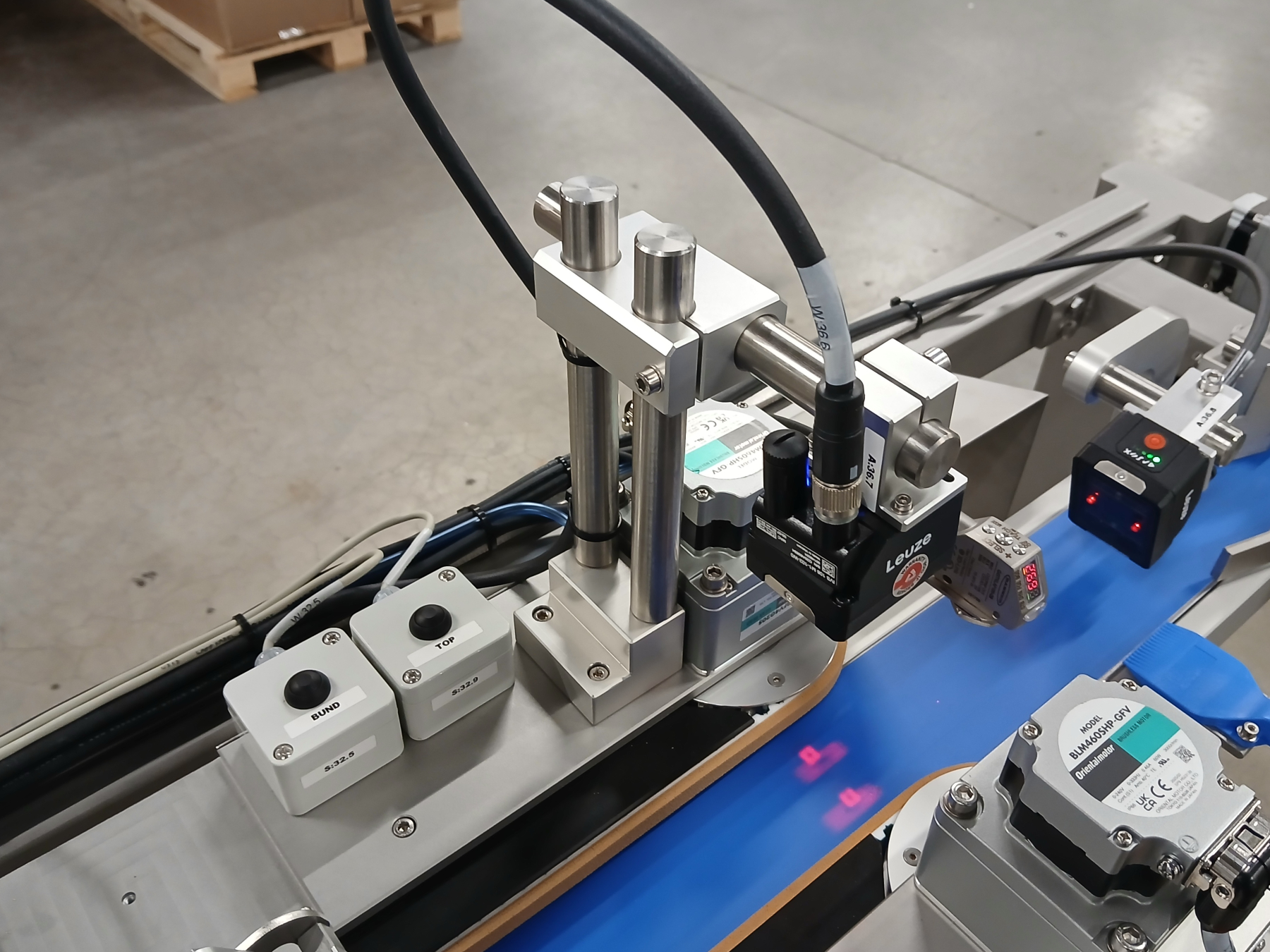

Cans move through three integrated dispensing stations — top, bottom and side — each fitted with its own SDA label dispenser
Star wheel and dispensers are servodriven, so speed and acceleration are fully adjustable from the recipe system

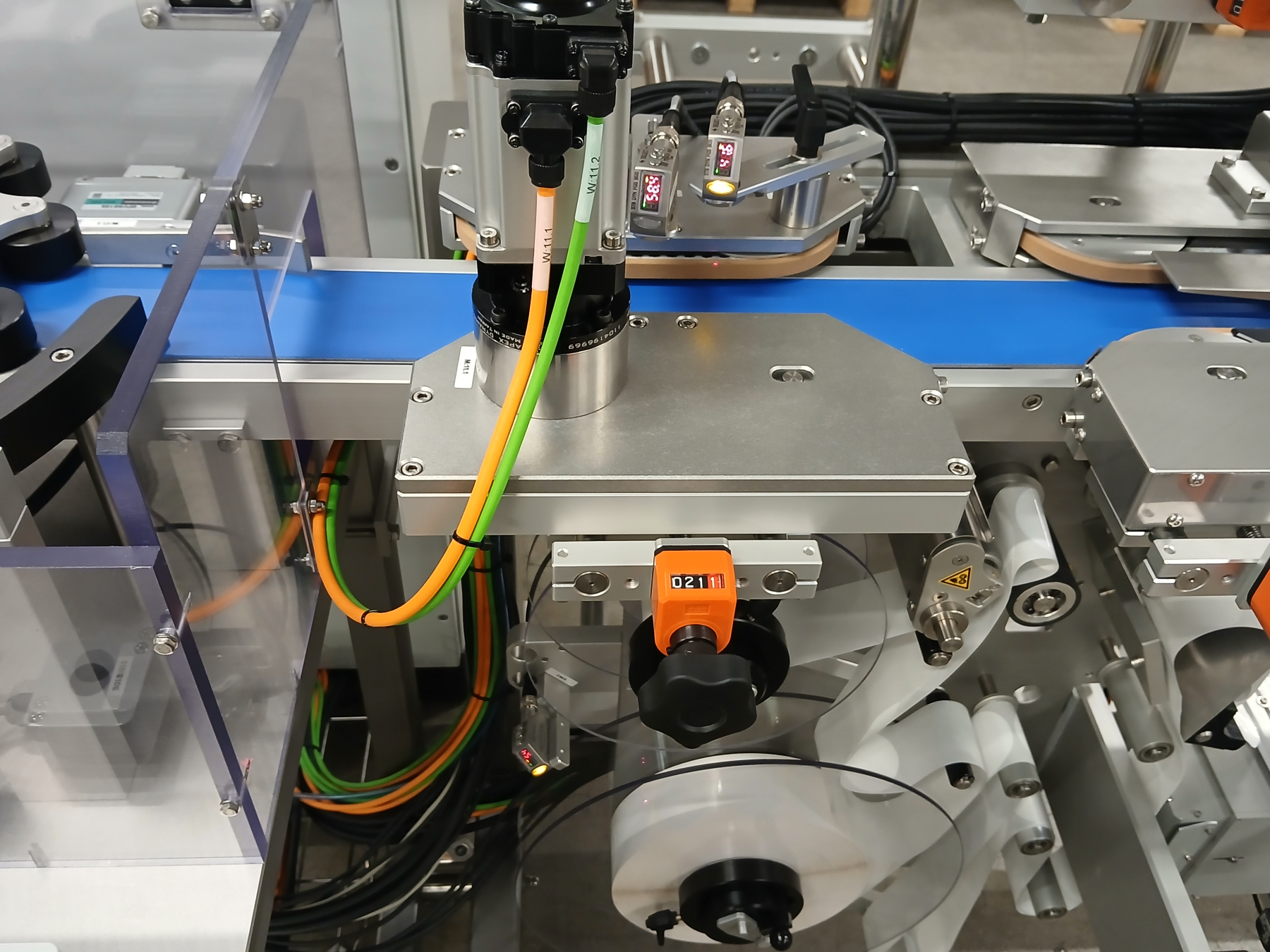

An optional orientation station rotates each can to a fixed reference point before labelling, so top, bottom, side and — if fitted — tax stamp labels are always applied in register

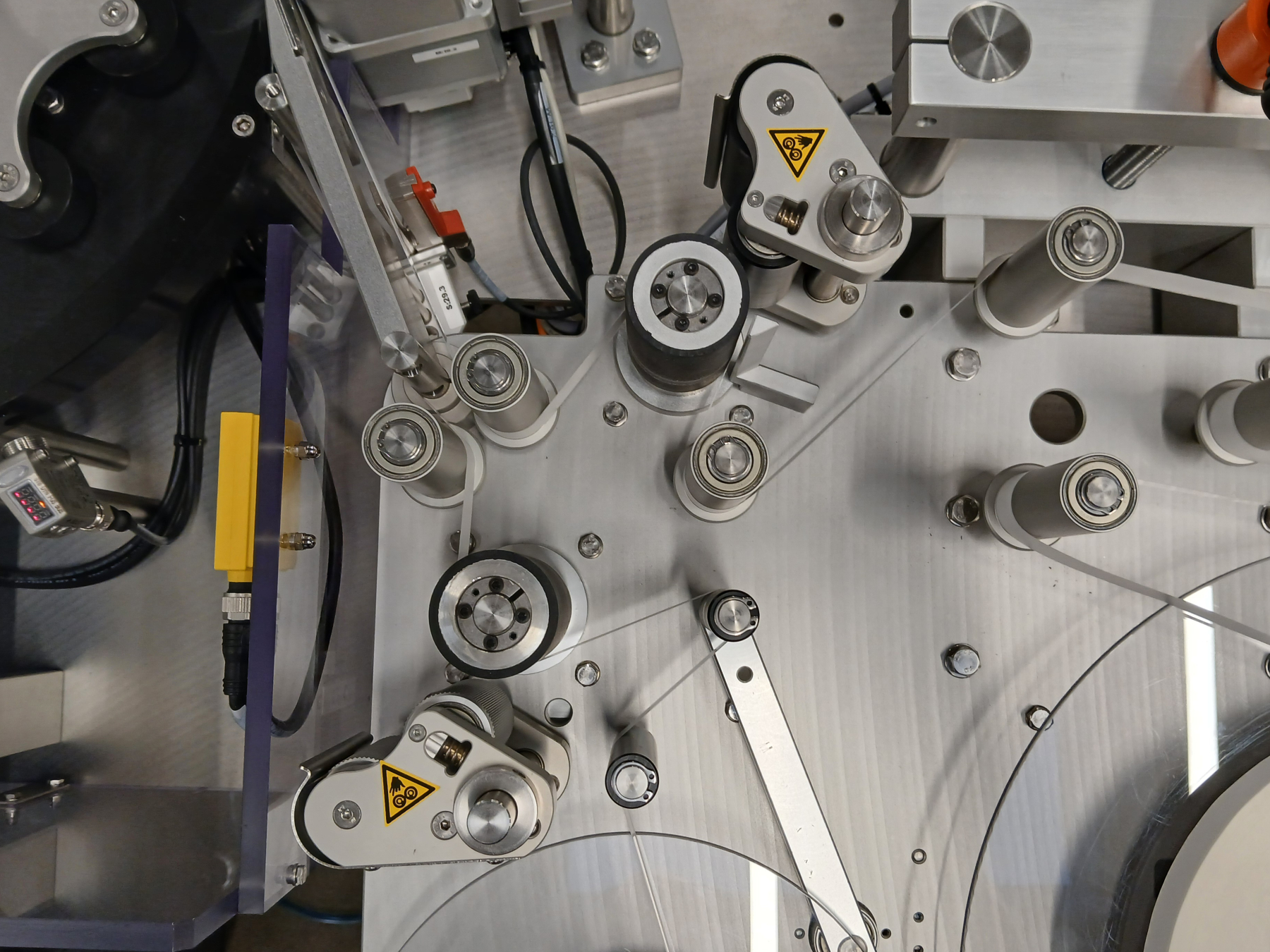

Technology spotlight – Unique 2-servo dispenser design.

One motor pushes, one motor pulls: Elmoprint’s 2-servo system holds a precise, recipe-controlled label tension across the full run, at speeds up to 85 m/min.
Available on all three dispensers, it reduces label breaks and lifts label accuracy — the upgrade we recommend for the very best uptime and precision, especially on demanding side labels.

Cans and speed.		Labels.
Can specifications	Diameter Ø50–Ø80 mm (additional formats available)	Top + Bottom	Ø 15–70 mm. Core Ø 76 mm. Roll up to 400 mm
Speed	Up to 150 cans Ø70 per minute	Side	Width 12–70 mm. Length 15–500 mm. Core ID 76 mm. Roll OD up to 400 mm
Precision	Top/bottom ±0.2 mm. Side ±0.3 mm. Side overlap ±0.3 mm (label/can quality dependent)	Type	Self-adhesive and thermal labels
Electrical and mechanical.
Power supply	3 x 400V + N + PE	Line direction	Right / Left
Air supply	Clean and dry air, 6 bar	Production environment	5–40°C. 20–85% RH, non-condensing
Construction	Stainless steel, anodized aluminium and POM	Dimensions	L 3100 mm x W 1500 mm. Height at conveyor 900 mm. Max height 2000 mm
Cabinet protection	IP66 (excluding printer)	Weight	±175 kg
Certification	CE. UL upon request
Technique.		Operation.
Dispensing	Direct dispensing. 3 pcs. SDA dispensers: 1 top, 1 bottom, 1 side	User levels	Operator, Technician, Superuser
Controller	5.7" HMI colour touchscreen (Eaton)	Languages	Danish and English, others on request

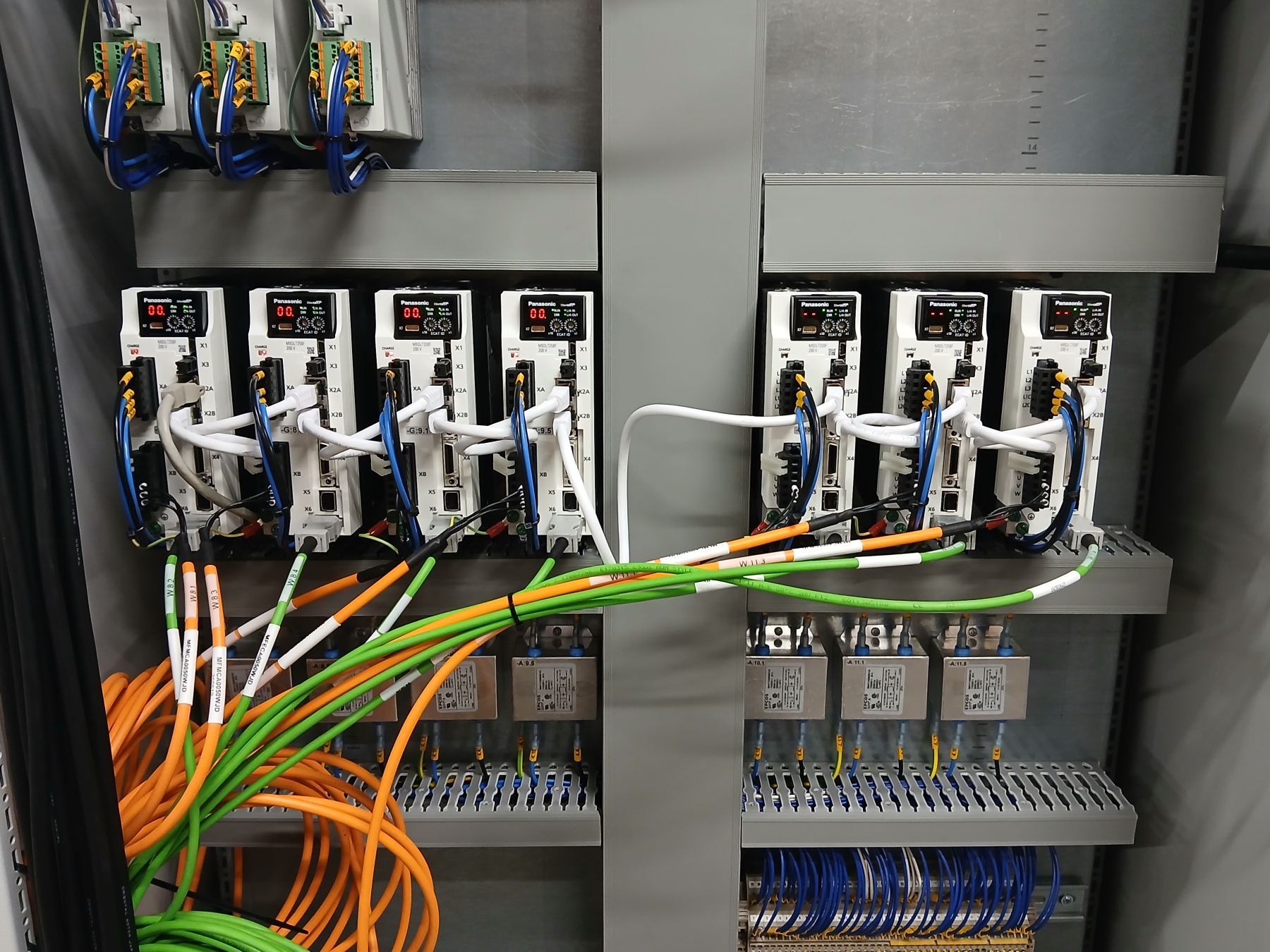

Motor & PLC	Panasonic A6 400W servo. Tri-Motion	Manuals	User, Service, Backup, Cleaning, Component list, Drawings, Spare parts, Datasheets
Signals	Start, Ready, Low label warning, Label change, Alarm, Emergency stop, Reject alarm
Recipes	Built-in label database with up to 99 recipes
Printers	Thermal transfer printer, laser or other marking systems on request

Options and extensions.

Camera system verifying label presence
Additional languages
Vision label detect
Bundle length check
I/O for track & trace
Tax stamp

Uptime.

When production never stops, neither should the equipment.

Our labelling solutions for the snus industry are built for precision, high speed and exceptional uptime.

Every Elmoprint labelling machine is developed with one goal in mind: Maximum operational reliability, high precision and long service life.

Our machines are handcrafted from quality components and designed for demanding production environments where accuracy, uptime and dependable performance are essential.

Every solution is adapted to the customer’s production line, ensuring efficient operation and long-term value.
