Multipack logistic label.

Full control of the traceable bundle.

One bundle. One label. Full traceability.

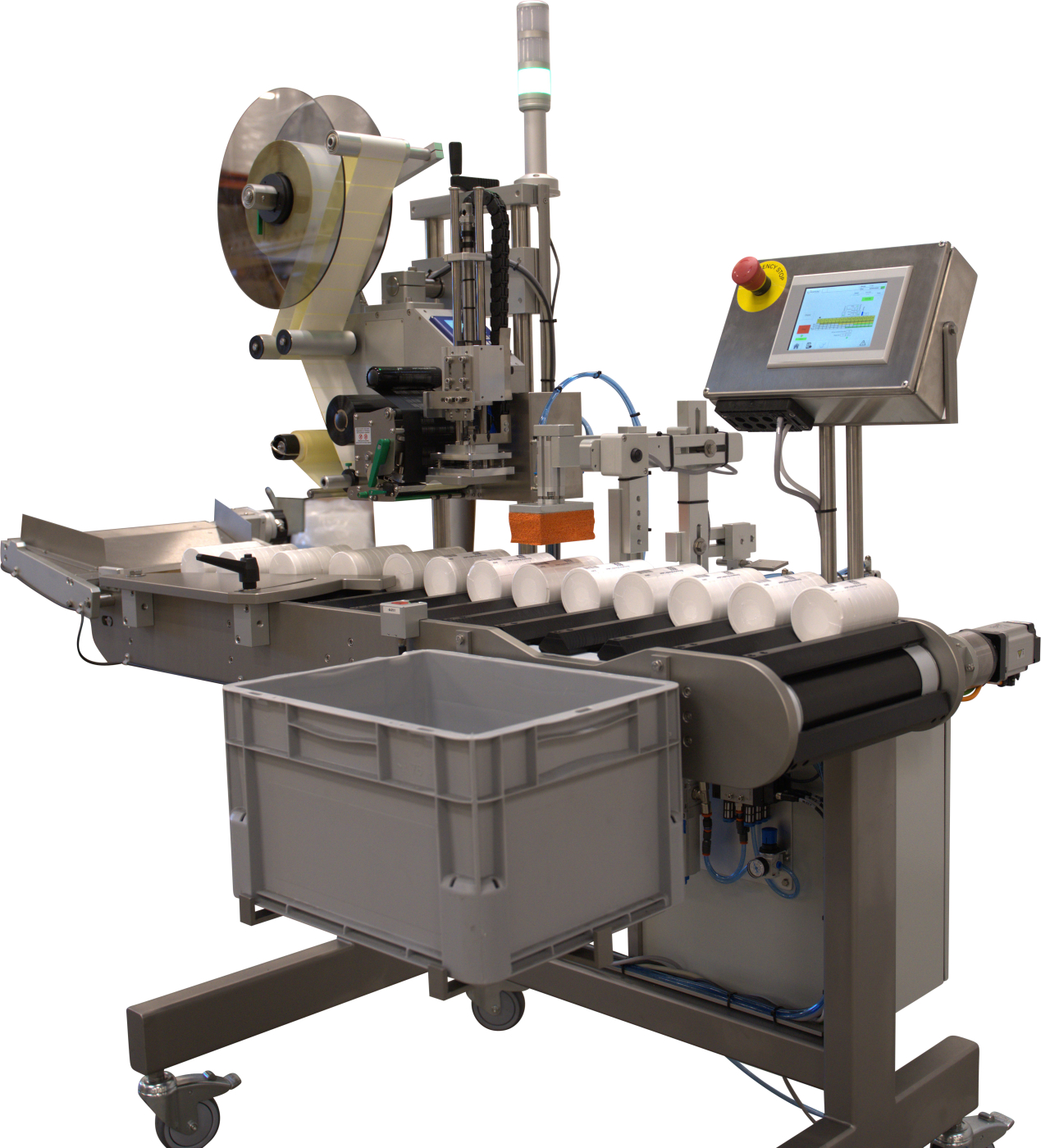

The unit applies and verifies a print/apply label on the side of every snus bundle — with barcode-level inspection built in.

30/min	Max. capacity
±1.0 mm	Placement accuracy
5-10	Cans per bundle
Verification	Print + Vision

Key words.

Capabilities

Benefits

Print/apply labelling directly onto shrink-wrapped bundles of 5–10 cans
Integrated vision inspection verifies barcode readability after application
Servo-driven indexing conveyor gives full status control of every pocket
Camera mounts and I/O pre-wired for track & trace integration
Automatic rejection of bundles with a missing or unreadable label
Right- and left-hand line directions available

Continuous 24/7, heavy-duty operation
Apply-Print cycling keeps cycle time to a minimum at full speed
Automatic drop gate prevents line congestion during downstream stops
Touchscreen HMI gives full access to conveyor, alarms and production data

How it works.

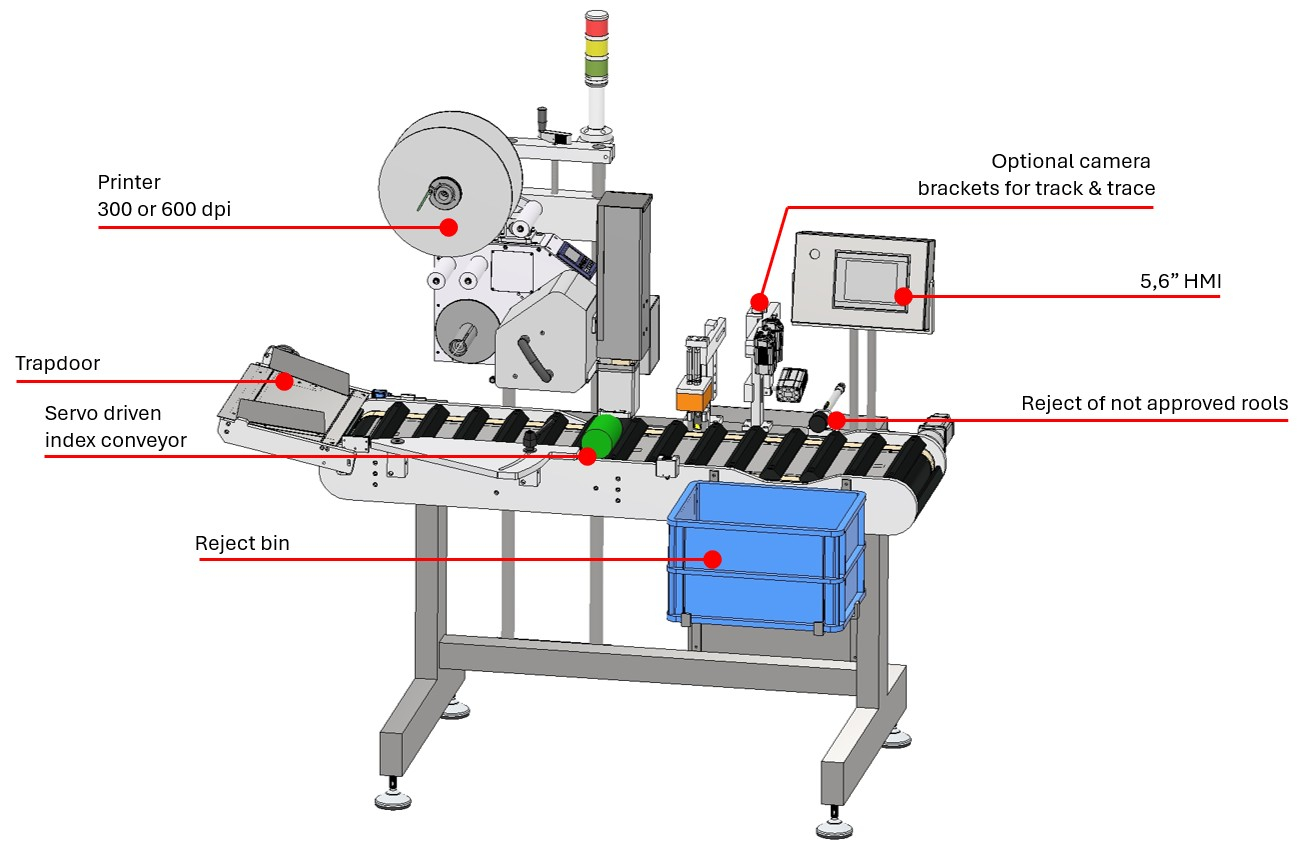

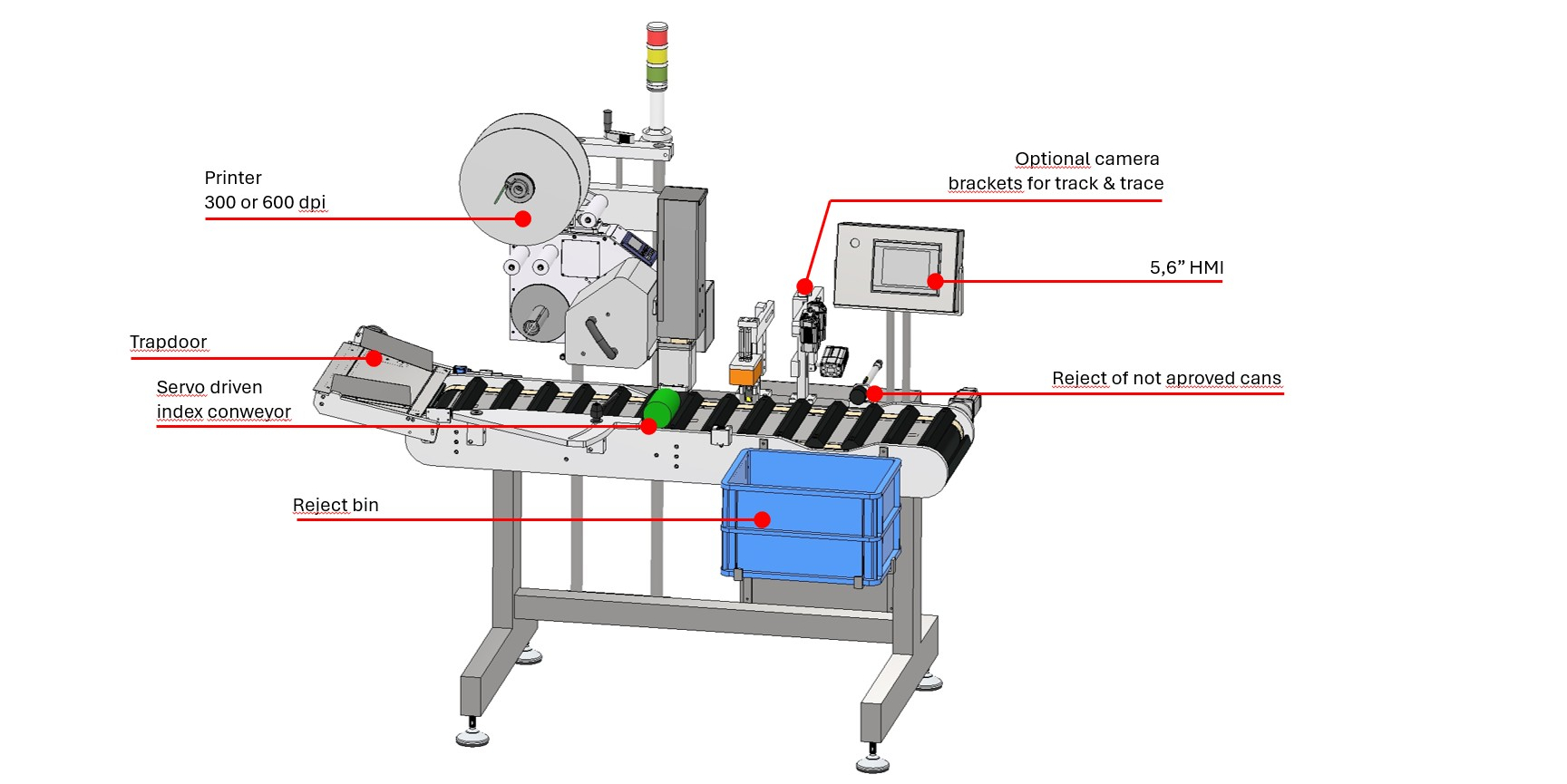

Bundles are loaded from the shrink tunnel, or manually, onto the Elmoprint SDA servo-driven indexing conveyor, which registers and tracks each bundle’s position and status through the process
In the labelling station, a Valentin print/apply unit prints and tamps the label onto the bundle side, and a sponge pressure pad presses it firmly onto the curved shrink-wrapped surface
An industrial vision system then verifies the barcode; approved bundles continue downstream while rejects are automatically diverted to a collection bin

Technology spotlight – Print/apply cycle with vision verification.

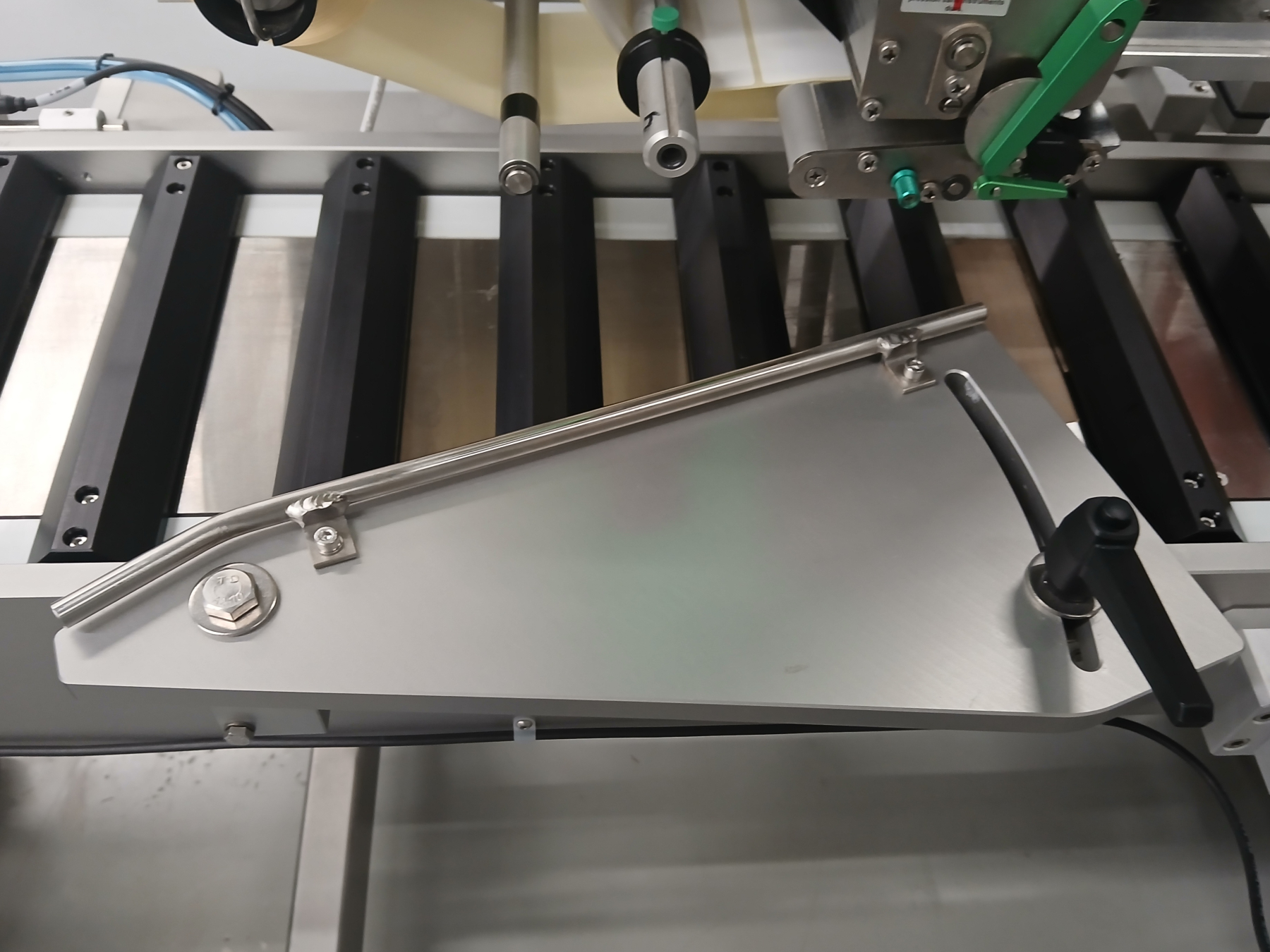

To hold full production speed, the unit prints the next label immediately after application and holds it ready on the vacuum pad for the next bundle. Combined with adjustable side guides for centred placement and an automatic drop gate ahead of the print/apply conveyor, the line keeps running — and keeps every label traceable — even through downstream stops.

Bundles and speed.		Labels.
Bundle specifications	Can Ø50–Ø80 mm. Bundles of 5 to 10 cans	Specifications	To customer’s request
Speed	Up to 30 bundles per minute	Type	Self-adhesive and thermal labels
Precision	±1.0 mm (label/roll quality dependent)
Electrical and mechanical.		xxx.
Power supply	1 x 230V + N + PE	Line direction	Right / Left

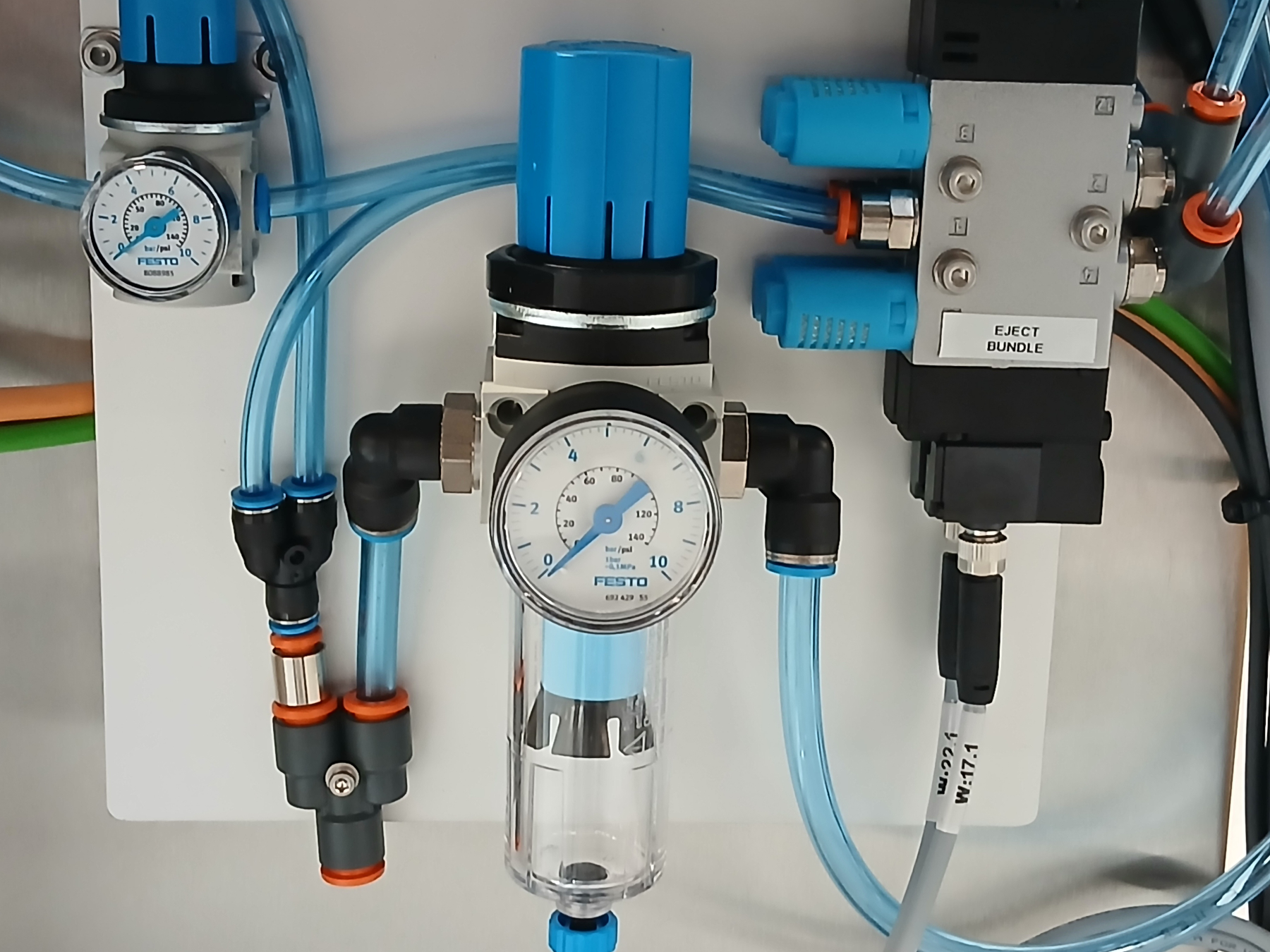

Air supply	Clean and dry air, 6 bar	Production environment	5–40°C. 20–85% RH, non-condensing
Construction	Stainless steel, anodized aluminium and POM	Dimensions	L 3100 mm x W 1500 mm. Height at conveyor 900 mm. Max height 2000 mm
Cabinet protection	IP66 (excluding printer)	Weight	±175 kg
Certification	CE. UL upon request
Technique.		Operation.
Dispensing	Print / apply	User levels	Operator, Technician, Superuser
Controller	5.7" HMI colour touchscreen (Eaton)	Languages	Danish and English, others on request
Motor & PLC	Panasonic A6 400W servo. Tri-Motion	Manuals	User, Service, Backup, Cleaning, Component list, Drawings, Spare parts, Datasheets
Signals	Start, Ready, Low label warning, Label change, Alarm, Emergency stop, Reject alarm
Recipes	Built-in label database with up to 99 recipes
Printers	Valentin ILX 106/12, 300 dpi, with APR7000 Tamp Applicator

Options and extensions.

Camera system verifying label presence
Additional languages
Vision label detect
Bundle length check
I/O for track & trace
Drop gate for ‘no products in shrink tunnel’
