Multipack brand label.

Make every bundle a brand.

Stack. Label. Brand.
The unit wraps a full-size label around 5–10 can snus bundles with amazing precision, stability and performance — smoothing the shrink film as it labels.

35/min	Max. capacity
±0.5 mm	Placement accuracy
5-10	Cans per bundle
Ø300 mm	Max label roll

Key words.

Capabilities	Benefits
Wrap-around labelling for shrink-wrapped bundles of 5 to 10 cansLabel placement accuracy of ±0.5 mm at up to 35 bundles/minute Triple roller module smooths the shrink film while applying the label SDA 300 dispenser handles labels up to 300 mm high and 500 mm long Optional ICE Zodiac Eagle thermal inkjet prints variable data in-line Right- and left-hand layouts to suit your factory footprint	Continuous 24/7, heavy-duty standalone operation Simple manual or automatic loading with gentle product handling Compact footprint for easy integration into existing lines Consistent, professional finished appearance on every bundle

How it works.

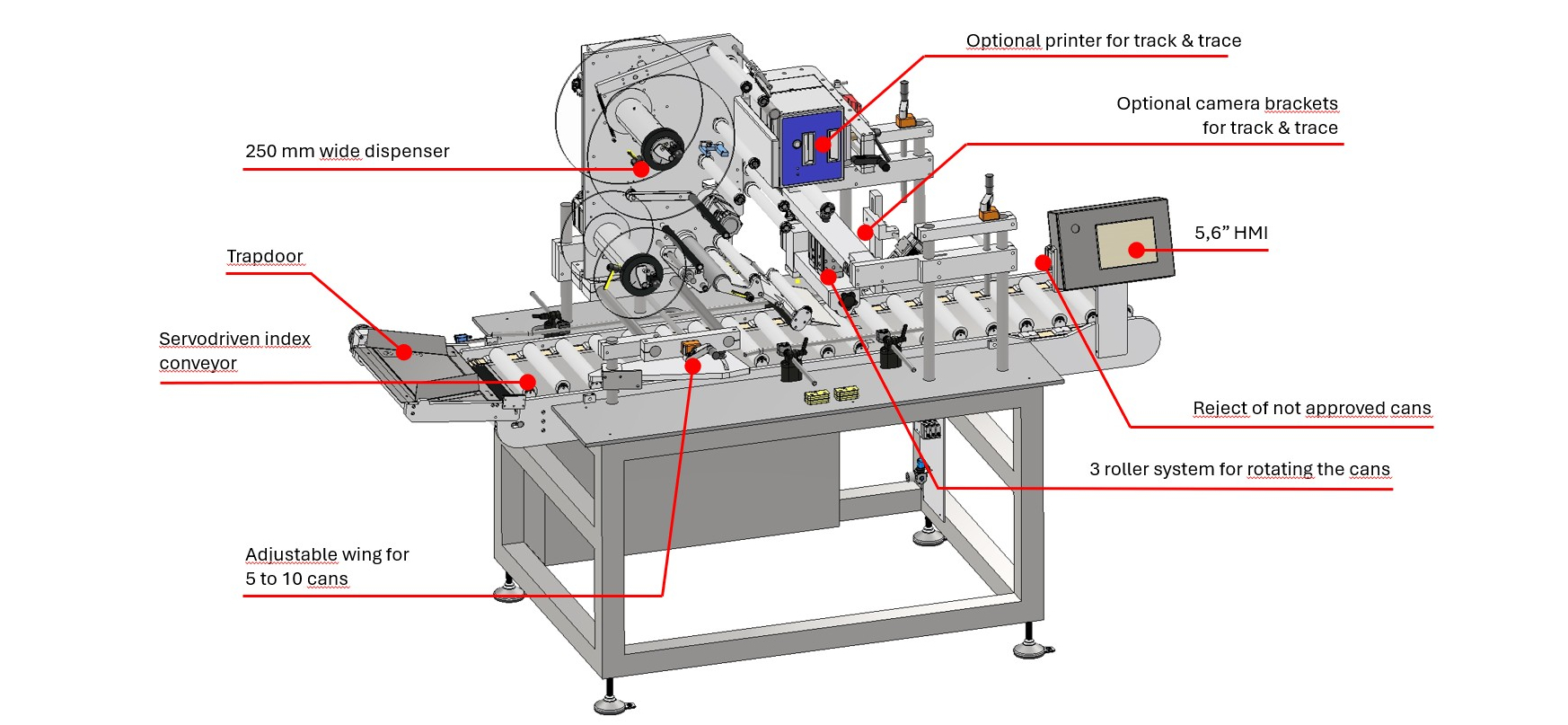

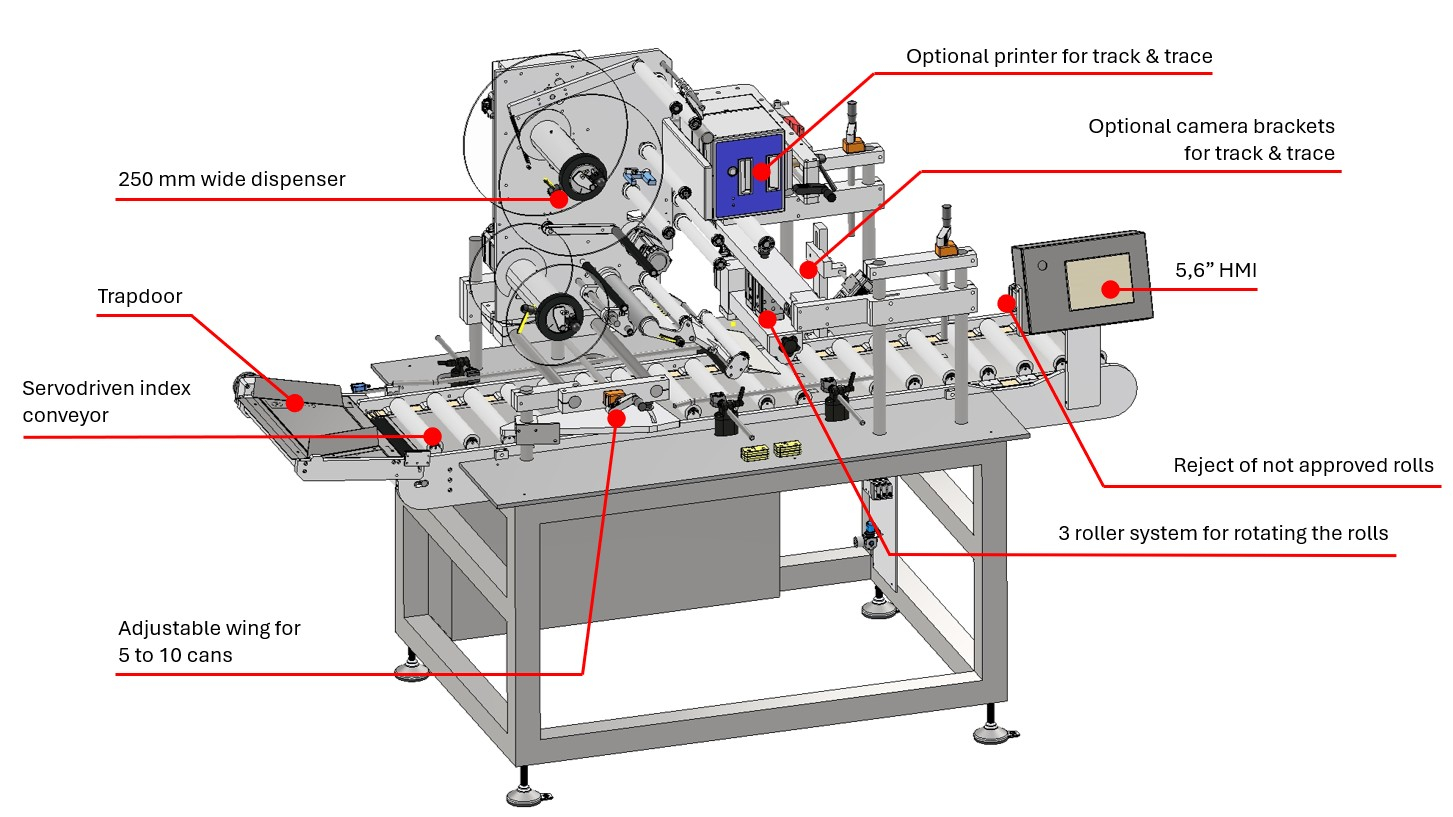

Bundles are loaded from the shrink tunnel, or manually, onto a servo-driven conveyor that carries them through a guarded labelling section into a triple roller module
A driven roller presses gently against the bundle and rotates it while the label feeds in between — smoothing the shrink film and wrapping the label around the bundle in one controlled motion
The roller then retracts and the conveyor advances the finished bundle to a packing table or collection container

Technology spotlight.

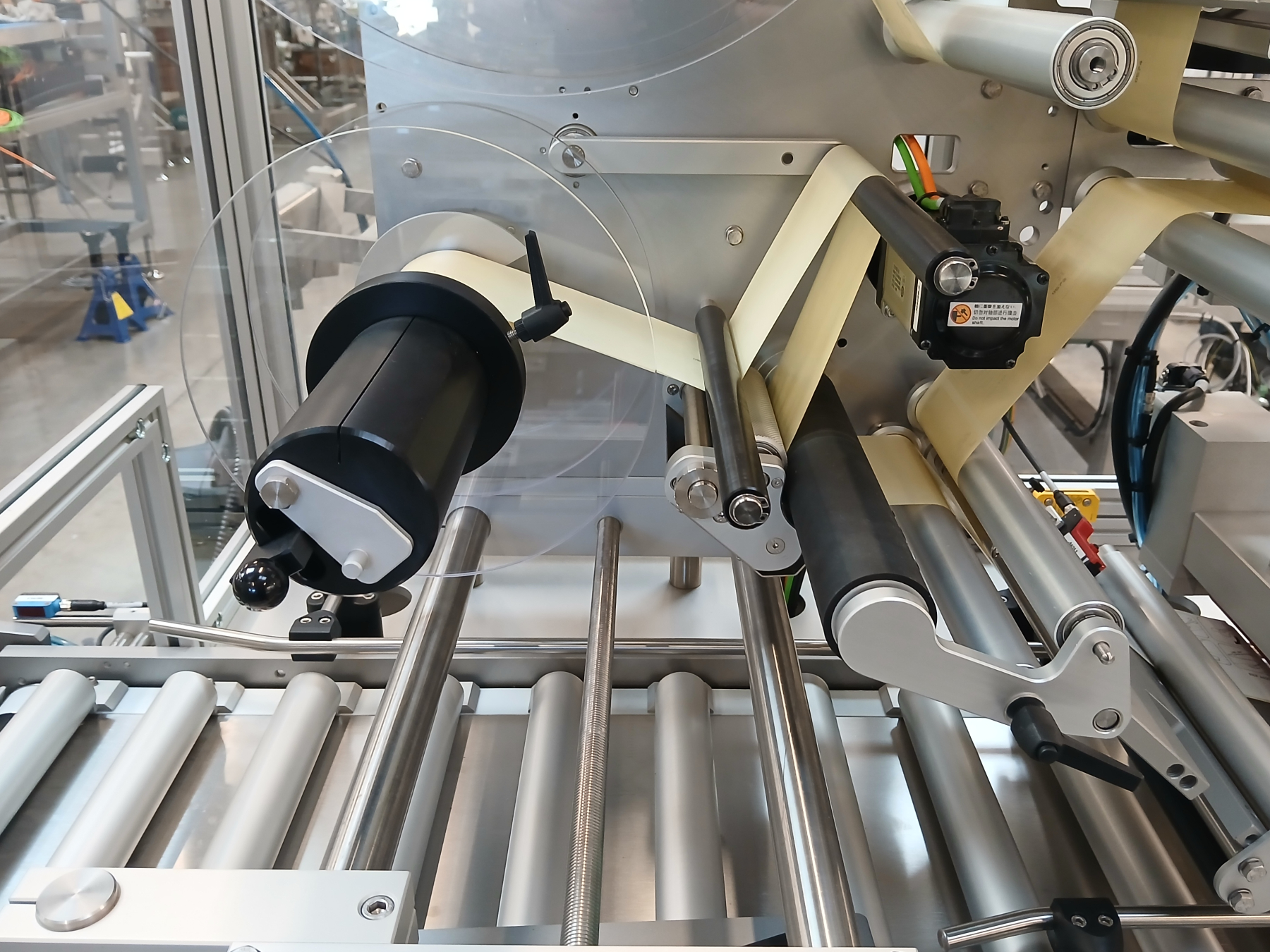

The SDA 300 servo dispenser doesn’t just apply the label — the rotating roller irons out wrinkles and excess film as it goes, so the wrap-around label finishes flat and brand-ready on every bundle.

Add the optional ICE Zodiac Eagle print head and the machine prints variable data straight onto the label, in the same pass.

Bundles and speed.		Labels.
Bundle specifications	Can Ø50–Ø80 mm Bundles of 5 to 10 cans	Specifications	Max. height 300 mm (typical 60 mm) Max. length 500 mm (typical 25 mm)
Speed	Up to 35 bundles per minute	Type	Self-adhesive and thermal labels
Precision	±0.5 mm placement accuracy (label/product quality dependent)
Electrical and mechanical.
Power supply	1 x 230V + N + PE	Line direction	Right / Left
Air supply	Clean and dry air, 6 bar	Production environment	5–40°C. 20–85% RH, non-condensing
Construction	Stainless steel, anodized aluminium and POM	Dimensions	L 3100 mm x W 1500 mm. Height at conveyor 900 mm. Max height 2000 mm
Cabinet protection	IP66 (excluding printer)	Weight	±175 kg
Certification	CE. UL upon request
Technique.		Operation.
Dispensing	Elmoprint SDA 300 wrap-around dispenser	User levels	Operator, Technician, Superuser
Controller	5.7" HMI colour touchscreen (Eaton)	Languages	Danish and English, others on request
Motor & PLC	Panasonic A6 400W servo Tri-Motion	Manuals	User, Service, Backup, Cleaning, Component list, Drawings, Spare parts, Datasheets
Signals	Start, Ready, Low label warning, Label change, Alarm, Emergency stop, Reject alarm
Recipes	Built-in label database with up to 99 recipes
Printers	Optional: ICE Zodiac Eagle

Options and extensions.

Camera system verifying label presence
Additional languages
Vision label detect
Bundle length check
I/O for track & trace
Drop gate for ‘no products in shrink tunnel’
ICE Zodiac Eagle (print area 107 x 75 mm)

Uptime.

When production never stops, neither should the equipment.

Our labelling solutions for the snus industry are built for precision, high speed and exceptional uptime.

Every Elmoprint labelling machine is developed with one goal in mind: Maximum operational reliability, high precision and long service life.

Our machines are handcrafted from quality components and designed for demanding production environments where accuracy, uptime and dependable performance are essential.

Every solution is adapted to the customer’s production line, ensuring efficient operation and long-term value.
